Efficient Fire Resistant Cable for Seamless Power Distribution

Model NO. : FRC

Current : DC & AC

Insulation Material : PVC

Sheath Material : Lsoh

Material Shape : Round Wire

Wire Core Material : Red Copper Wire

Certification : ISO, CCC, CE, RoHS, VDE

Model : Wdza-Yjy

Brand : Shanghai Shenghua

Test Voltage : 3.5kv/5mins

Jacket Color : Orange

Transport Package : Wooden Drum

Specification : 4x25 mm2

Trademark : SHAN CABLE

Origin : Shanghai China

HS Code : 8544492100

Supply Ability : 6812km/Week

Contact Now

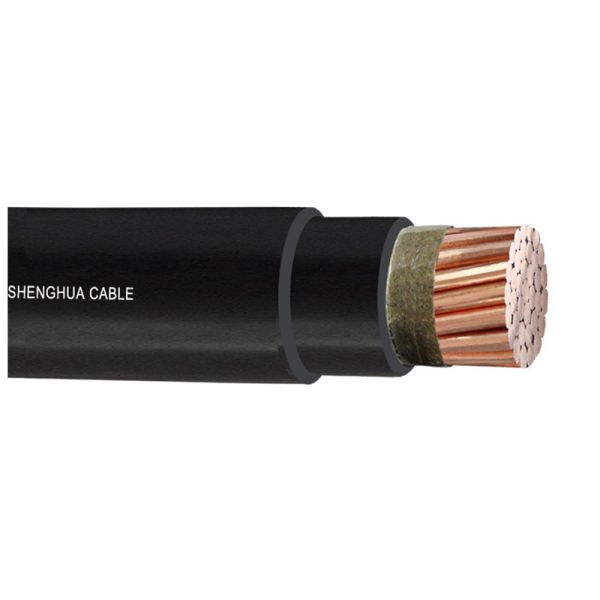

Constructions

Copper or aluminum conductor
Mica tape for fire-proof
PE or XLPE insulation
Filler
Wrapping tape
Low-smoke zero halogen or low-smoke low- halogen polyolefin sheath
Cable mark

Applications
Used for applications requiring circuit integrity during a fire mainly used in Fire Alarm systems, sprinkler systems in schools, hospitals, cinemas and railways.

Standards
International: IEC 60331
China: GA 306.2-2001, GB12706-91

Model List

SC₁-FP_B-CE	XLPE insulated halogen-free polyolefin sheathed safe & clean fire-proof cable
SC₃-FP_B-CV	XLPE insulated low-halogen PVC sheathed safe & clean fire-proof cable
SC₁-FP_B-CE₂	XLPE insulated steel tape armored halogen-free polyolefin sheathed safe & clean fire-proof cable
SC₃-FP_B-CV₂	XLPE insulated steel tape armored low-halogen PVC sheathed safe & clean fire-proof cable

Code designations

S	Safe
C	Clean, Low smike, zero halogen
1 or 3	Flame resistant class as per GA306.1-2001
A or C	Flame resistant type A or C
FP	Fire proof
B	Fire rated temperature 750-800ºC
C	Crosslinked polyethylene-XLPE
CT	XLPE insulated control cable
E	Zero halogen polyolefin sheath
V	Low halogen PVC sheath
2	Steel tape armoring
P	Copper wire braid screen
P2	Copper tape screen

Specifications

Voltage	Model No.	Cores	Section area (mm²)	Model No.	Cores	Section area (mm²)
0.6/1kV	SC_1A-CE and SC₁-FP_B-CE series	1	1.5 400	SC_1A-CE₂ and SC₁-FP_B-CE₂series	1	1.5 400
		2	1.5 400		2	1.5 400
		3	1.5 400		3	1.5 400
		4	1.5 400		4	1.5 400
		3+1	2.5 240		3+1	2.5 240
		5	2.5 240		5	2.5 240
		3+2	2.5 240		3+2	2.5 240
		4+1	2.5 240		4+1	2.5 240
		4 61	1 2.5		4 61	1 2.5
450/750V	SC_1A-CTE series	4 14	4	CBV CRV series cables' specifications CBVR
	SC_1A-CTE₂ series	4 14	6
	SC_1A-CTEP series
	SC_1A-CTEP₂ series
